In order to install the MIA Upgrade
TUFF LG, and Tail Rotor Fin Guard, the Walkera CB100 stock
LG and tail rotor guard needs to be removed.

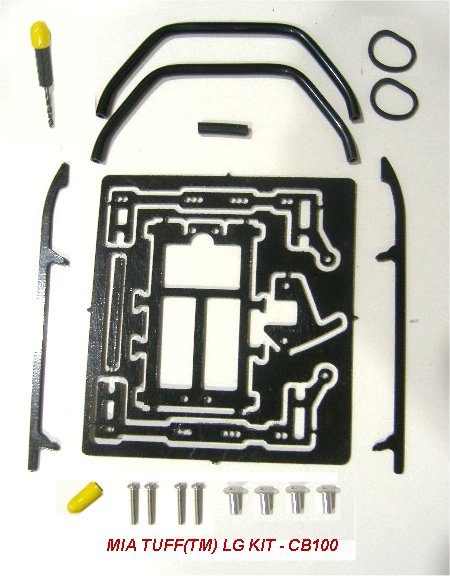

Break off the G10 pieces from the parts
tree at the supporting part bridges. Clean the parts
before assembly, test fit the parts using the step by step
photos above, make sure you have a clear understanding how
the parts are oriented and assembled, then proceed to CA glue
all G10 part assembly joints, step by step.

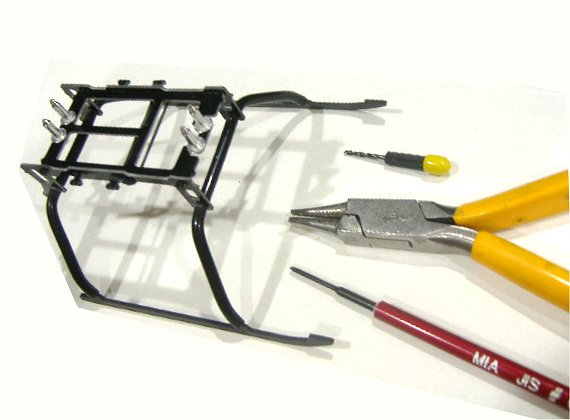

The MIA TUFF LG has boom supports, in much the same fashion, as the
original Walkera 4G6 frame, but the boom support rods are
optional.

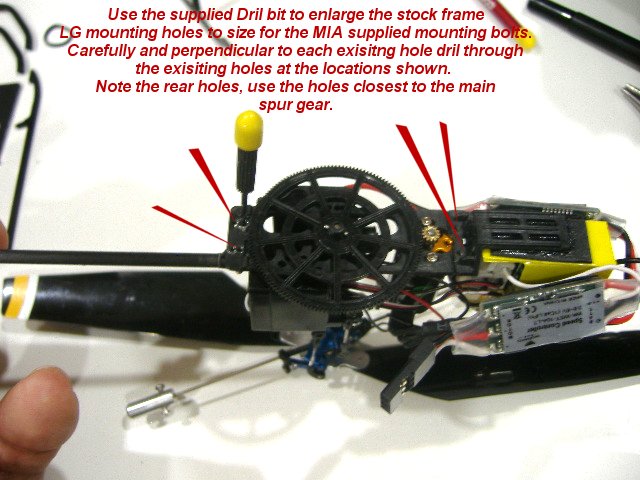

The bottom of the stock plastic frame
LG mounting holes need to be enlarged with the supplied
MIA Micro Drill bit, to accept MIA hardware easier.

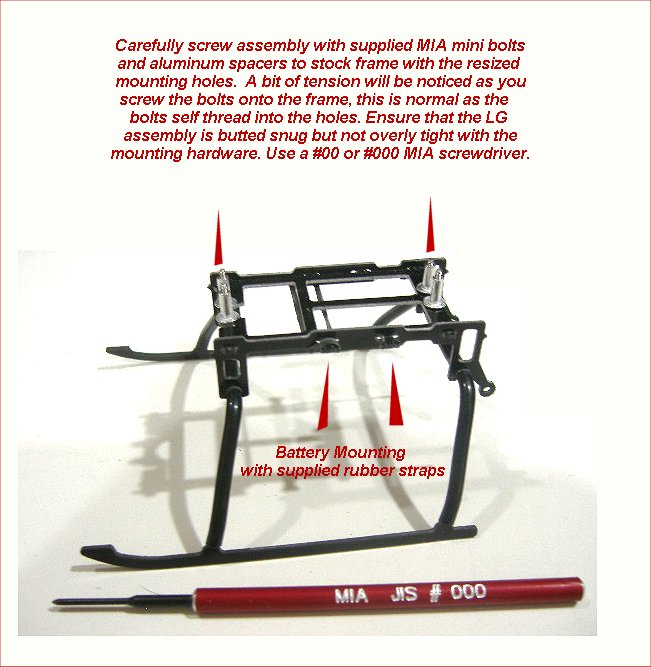

The supplied 4 MIA aluminum spacers go on the
rear and the front of the frames with the longest MIA 3/8"
long Pan Head screws. The screws will self thread
with a bit of tension, work each one at a time. Do the
strut installation after the strut support assembly is
fastened to the stock plastic frame.
The battery is simply tucked and held
with a bit of pressure from the front plastic strut and under the battery support
or directly below the CG. Use 2 rubber bands to hold the
battery in place. The battery can be adjusted for/aft for
adjustment of CG, the helicopter typically balances
directly under the center of the rotor head.
